AXGATE SSL INSIDE Series SSL Visibility Solution

The start of security
for the SSL encrypted communication
AXGATE SSL Visibility Solution
for the SSL encrypted communication
AXGATE SSL Visibility Solution
AXGATE SSL INSIDE Series SSL Visibility Solution is a specialized SSL Visibility Solution that provides visibility of SSL/TLS traffic to various security equipment through encryption/decryption of SSL/TLS protocols (HTTPS communication) in web traffic. AXGATE’s proprietary technology achieves a stable performance, thereby minimizing performance degradation even during the high volume network traffic processing. The existing network and various network security equipment could be connected and operated without changing the configuration.
With such diverse product line ups, you could introduce the SSL visibility solutions customized to each need of business and public institution.
With such diverse product line ups, you could introduce the SSL visibility solutions customized to each need of business and public institution.
Specifications

SI-2300 | SI-7000 | SI-13000 | SI-23000 | ||

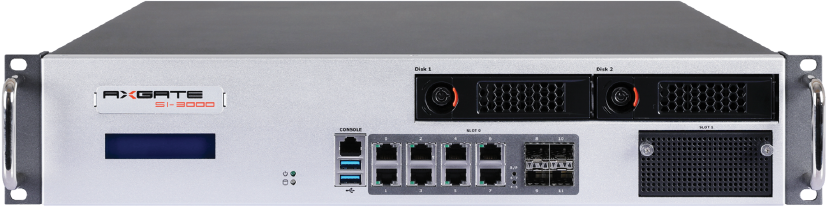

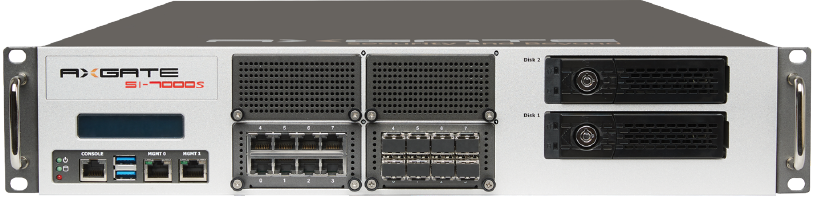

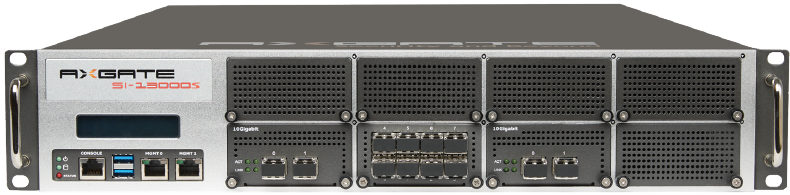

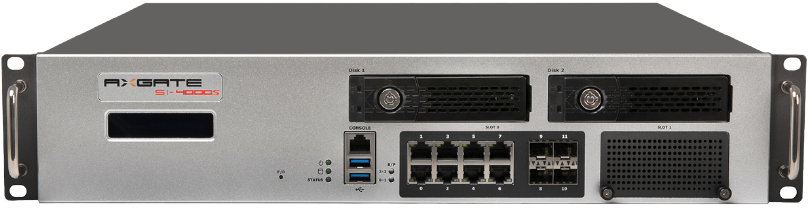

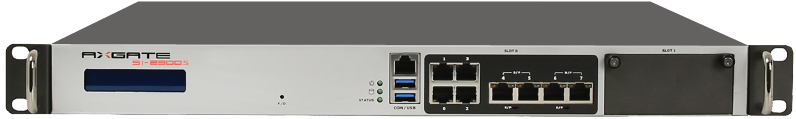

Appearance | ![]() |
![]() |
![]() |
![]() |
|
Capacity | Total Throughput | 2 G | 10 G | 15 G | 20 G |
SSL Throughput | 600 M | 3 G | 7 G | 10 G | |
SSL Visibility | Inline / mirroring decryption traffic forwarding | Supported | |||
SSL Off-Loading | |||||
Host based decryption | |||||
Certificate status management and automatic distribution |
|||||
Automated bypass target collection and category provision |
|||||
Traffic analysis / monitoring | |||||
Log and reporting (certificate /category / user / time) |
|||||
Action method | Full Transparent Proxy | ||||
Configuration method | Passive Tap, Passive In-line, Active In-line(Fail-Open or Fail-Close) | ||||
SSL decryption's action method | Session's transparency maintained via certification resign (5-Tuple) | ||||
Protocol | Encryption protocol | TLS 1.0, TLS 1.1, TLS 1.2, TLS 1.3, SSL v3 | |||
Public key algorithm | RSA, DHE, ECDHE | ||||
Symmetric key algorithm | AES, AES-GCM, 3DES, DES, RC4, Camellia | ||||
Hash algorithm | MD5,SHA-1,SHA-2,SHA256,SHA384 | ||||
RSA key | 512 to 8192 bit |
